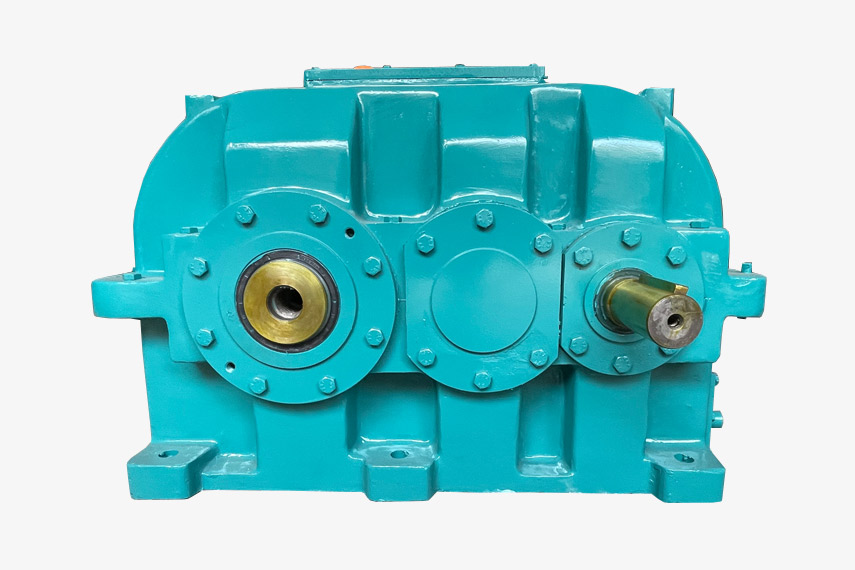

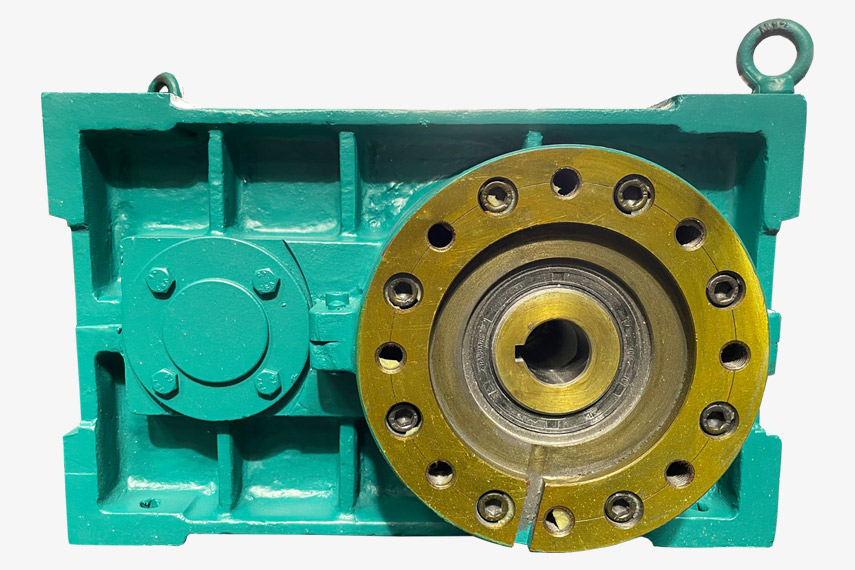

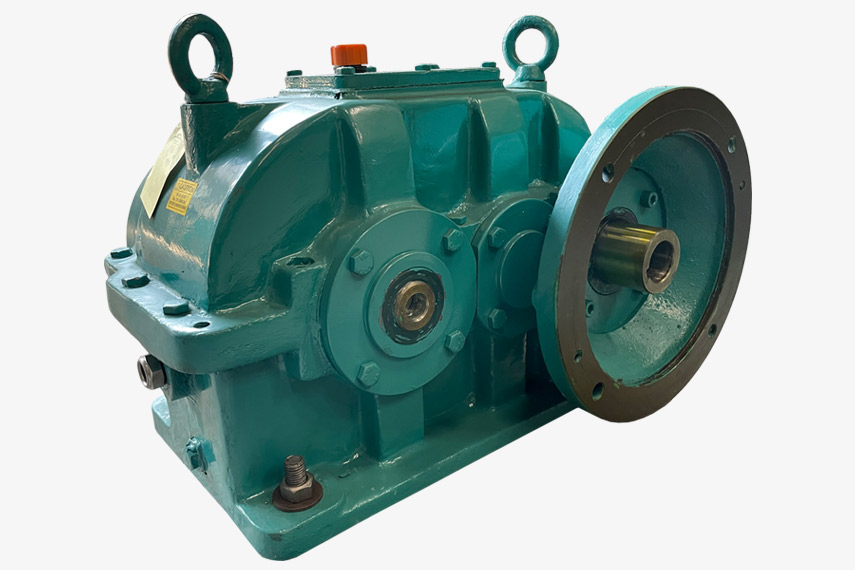

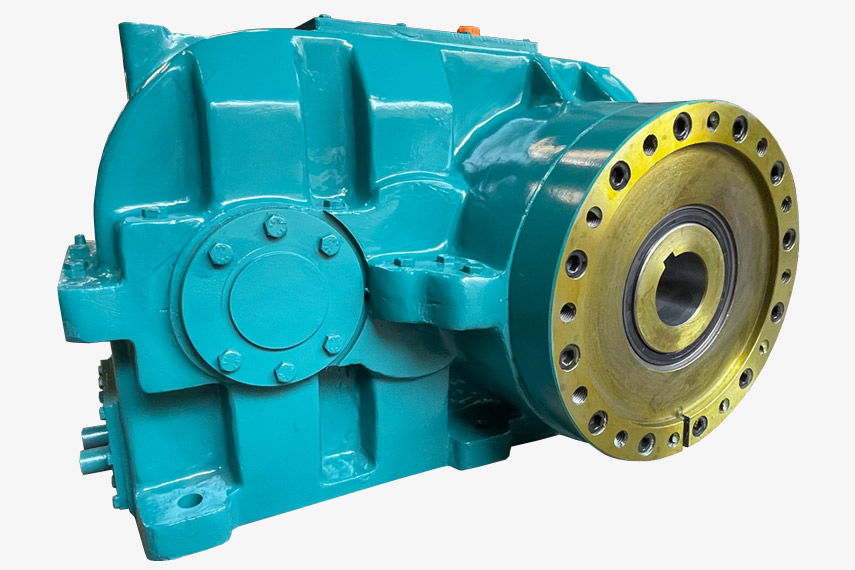

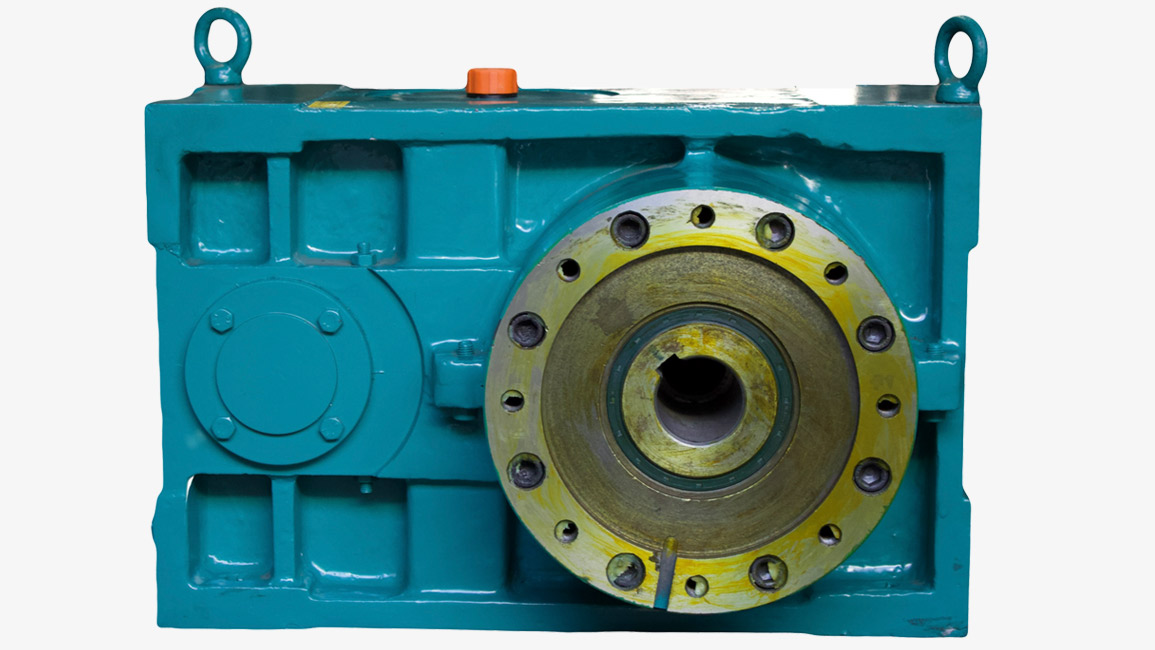

Extruder Helical Gearbox
Add Power "AEX" series for extruder is the modern development and design specially for use of single screw extrusion of various product such as Plastic, Rubber, Lumps etc. It is also widely used in most of every plastic related machinery. Add Power "AEX' has the highest numbers of model in Extrusion Gearbox in India compared to any other. More than 22,000 Extruder gearbox are successfully running in the industry.
These two stage helical reducers have modular design with normal reduction ratio between 6:1 to 20:1. Add Power "AEX" series Gearbox are available in more than 12 sizes and running up to 100 KW. The Spherical Thrust bearing system carries reverse thrust load generated by differential pressure during moulding. AEX series also comes with the 1 year guarantee.
Specifications :
- Power : High power ratings for maximum torque from 0.25 KW to 500 KW and Up to 2500Nm and Motor HP Up to 150.
- Design : Easy to operate and Simple design to understand.
- Size : Available sizes – 80 C.D to 280 C.D
- Thrust Bearing and Oil seal : Spherical Thrust/ Taper roller bearing. Silicon case oil seals for better performance.
- Input : Solid input shaft with keyway (Hollow input shaft also available)
- Output : Hollow output shaft as per customer's requirement.
- Other Features : FLS (Force Lubricating System) also available if required. Comes with Cooper water cooling pipe. Universal mounting position model also available
- Ratio : Gear ratio 6:1 to 50:1 and Power rating up to 100 KW.
Application and Industries:
- Plastic machinery
- Rubber Industry
- Blow moulding machinery
- Injection moulding machinery
- Tubbing plant
- Bio-Degradable plant
- Lamination plant
- Pipe plant
- Blown film plant
- Mono-Filament plant
